CJV82/NSA, CJPF96/NSC, CJPJ85/NSC

Category:

Marine power cable

Key words：

CJV82/NSA, CJPF96/NSC, CJPJ85/NSC

our products are also exported to clients in such countries and regions as  USA, Germany, UK, Malaysia, Switzerland, Japan, Australia, Korea, Canada, Russia, Netherland, UAE etc. and win good feedbacks from our customers.

Message

PRODUCT DETAIL

Brief product description and advantages
95mm xlpe cable
1: XLPE insulated, Low voltage,0.6/1kV
2: armoured cable, fire resistant
3: PVC,SHF1,SHF2 inner sheath and outsheath

ZhongDa 95mm XLPE Cable
Model 95mm XLPE Cable
Sheath PVCor SHF1 or SHF2
1 Core to 37 cores
Warship (WARSHIP) Ship, Offshore oil, Port,military industry etc

Custom attributes
Type  95mm xlpe cable
Conductor  copper conductor
Insulation  XLPE
Screen or Armor  tinned copper wire braided or galvanized steel wire braided
Sheath PVC or SHF1 or SHF2
Color   black,grey,blue
Standards applied  IEC60092
Operating temperature -15℃ to +90℃
Certificate  ABS,BV,CCS,DNV,GL,KR,LR,NK,RINA,RS
Model Number CJV82 CJV92 CJPF86 NSC
Remark  95mm xlpe cable
Voltage Grade  low voltage

The delivery period is 7-30 days
Fumigation Wooden Drum, 200M/ drum, 500M/ drum

95mm xlpe cable

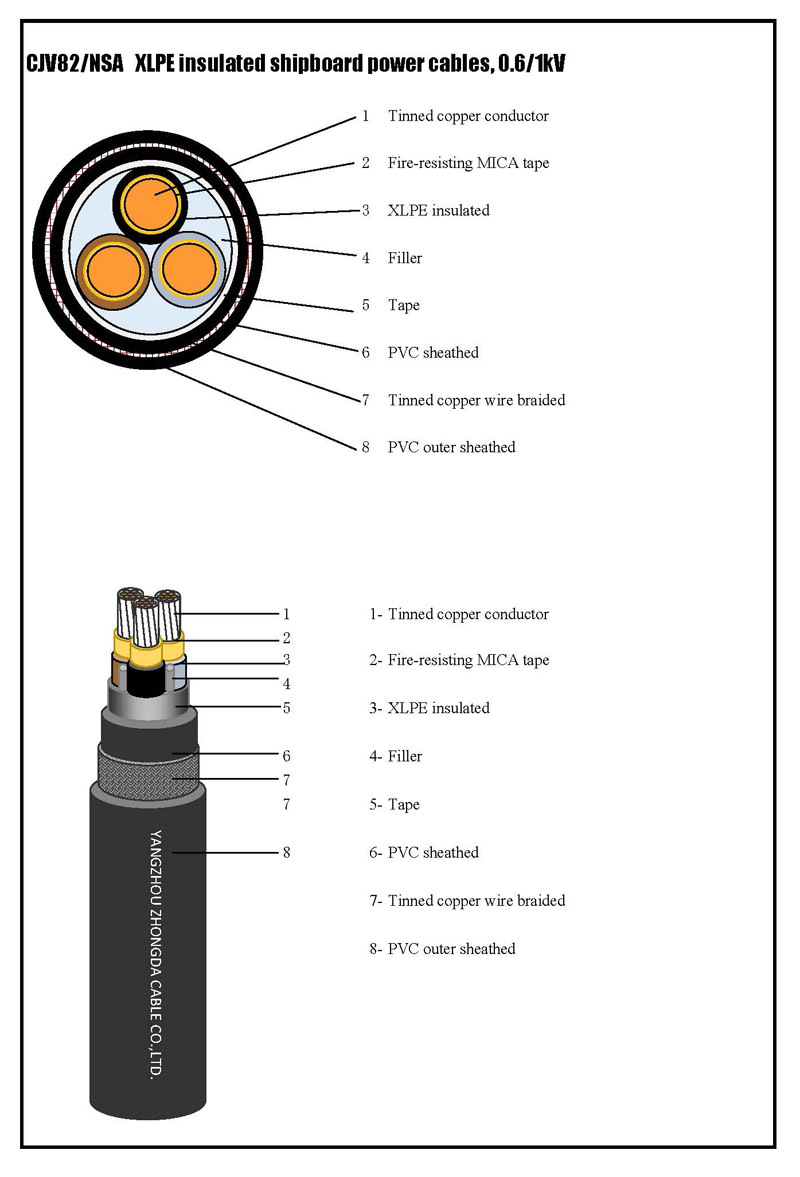

CJV82 NSA0.6/1 kv
CJV92 / NSA 0.6/1 kv
CJPF86 / NSC 0.6/1 kv
CJPF96 / NSC 0.6/1 kv
CJPJ95 / NSC 0.6/1 kv
CJPJ85 / NSC 0.6/1 kv
Shipboard low voltage power cable


Construction

Code Letter

Material or requirements

Shipboard power cable

C

-

Conductor (1)

-

Stranded copper wire

Insulation (2)

J

Cross-linked polyethylene (XLPE)

Filler and tape (3)

-

Non-hygroscopic material

Inner sheath (4)

PJ or PF or V

Thermoset polyolefin (XLPO) or Thermoplastic polyolefin (PO) or
  Polyvinyl chloride (PVC)

Screen or Armor (5)

8 or 9

Tinned copper wire braided or Galvanized steel wire braided

Outer sheath (6)

5 or 6

Thermoset polyolefin (XLPO) or Thermoplastic polyolefin (PO)

Fire resistant

N

Fire resistant

Flame retardant

S

Bunched flame retardant

Low smoke and halogen free

C

Low smoke, halogen free and low toxicity

Low smoke and halogen free

A

Smoke, halogen and toxicity

CJ95/NSC 0.6/1kV
CJ96/NSC 0.6/1kV
Shipboard low voltage power cable

Construction

Code Letter

Material or requirements

Shipboard power cable

C

-

Conductor (1)

-

Stranded copper wire

Insulation (2)

J

Cross-linked polyethylene (XLPE)

Filler and tape (3)

-

Non-hygroscopic material

Inner covering (4)

-

Extruded compound

Screen or Armor (5)

9

Galvanized steel wire braided

Outer sheath(6)

5 or 6

Thermoset polyolefin (XLPO) or Thermoplastic polyolefin (PO)

Fire resistant

N

Fire resistant

Flame retardant

S

Bunched flame retardant

Low smoke and halogen free

C

Low smoke, halogen free and low toxicity
Standards applied
Construction：IEC60092-353
Conductor：IEC60228 Class 2, Class 5
Insulation：IEC60092-351
Sheathed：IEC60092-359
Fire resistant: IEC60331-1/2/21
Flame Retardant：IEC60332-3-22
Smoke Density：IEC61034
Halogen Index：IEC60754

Cores identification
1 core: Black
2 cores: Brown, Blue
3 cores: Black, Brown, Grey
4 cores: Black, Brown, Grey, Blue
5 cores and more: Print white number on black core
Earth core: Yellow/Green

Outer sheath color
Black
Main characteristics
Operating temperature：-15℃～+90℃
Rated voltage：0.6/1kV
Test voltage：3.5kV/5min
Flame spread test on bunched cable: Cat. A
Smoke density of completed cable: ≥60%

Application

The cable is mainly intended for shipboard and offshore building to transmit electrical power, lighting and control system.
